The HTC8631A (single), HTC8632A (dual) and HTC8634A (quad) are low noise, low voltage, and micro power operational amplifiers. With an excellent bandwidth of 6.5MHz, a slew rate of 4V/μs, and a quiescent current of 480μA per amplifier at 5V, the HTC863xA family can be designed into a wide range of applications.

The HTC863xA op-amps are designed to provide optimal performance in low voltage and low noise systems. The input common-mode voltage range includes ground, and the maximum input offset voltage are 4.2mV. These parts provide rail-to-rail output swing into heavy loads. The HTC863xA family is specified for single or dual power supplies of +2.1V to +5.5V. All models are specified over the extended industrial temperature range of −40℃ to +125℃.

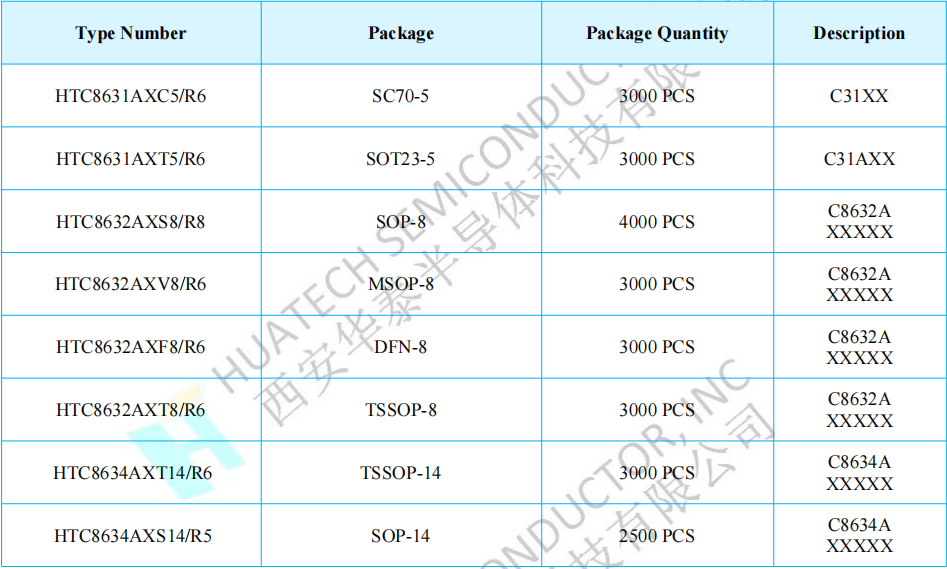

The HTC8631A is available in 5-lead SC70 and SOT-23 packages. The HTC8632A is available in 8-lead MSOP, DFN2*2, TSSOP and SOP packages. The HTC8634A is available in 14-lead TSSOP and SOP packages.

nHigh Slew Rate: 4 V/μs
nWide Bandwidth: 6.5 MHz
nLow Power: 480 μA per Amplifier Supply Current
nSettling Time to 0.1% with 2V Step: 1 μs
nLow Noise : 20 nV/√Hz  @10KHz
nHigh Gains of 103 dB for Active Filters and Gain Stages
nLow Offset Voltage: 4.2 mV Maximum
nUnit Gain Stable
nRail-to-Rail Input and Output
Input Voltage Range: -0.1 to +5.1 V at 5V Supply
nOperating Power Supply:  +2.1 V to +5.5 V
nOperating Temperature Range: −40℃ to +125
